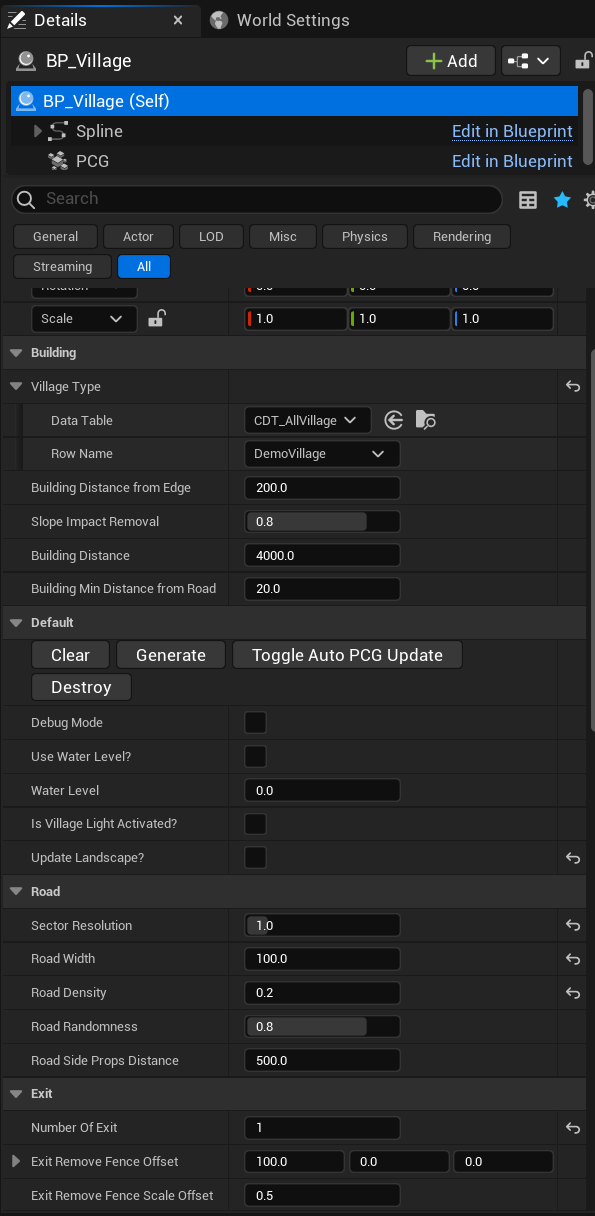

The rest of the settings are on the BP_Village and BP_Farm exposed to be customized in your scene. I placed them here because it makes it a lot easier to tweak the final result of your village, and it probably fits better per village and not globally.
Village Type: Use the database, you can change the value to change the style of the village/farm
Building Distance From Edge: Minimum distance that a building must have from the edge of the village
Slope Impact Removal: Used to remove buildings on a slope, more is more severe
Building Distance: Minimum distance between 2 building
Building Min Distance From Road: Minimum building distance from the road
Debug Mode: Activate the debug mode, show the region in your village
Use Water Level: use the water level to remove the building
is Village Light Activated?: If true, will activate all the villages in the scene
Update Landscape?: Tell PCG to automatically update the landscape, better to not touch and use the function Toggle Auto PCg Update

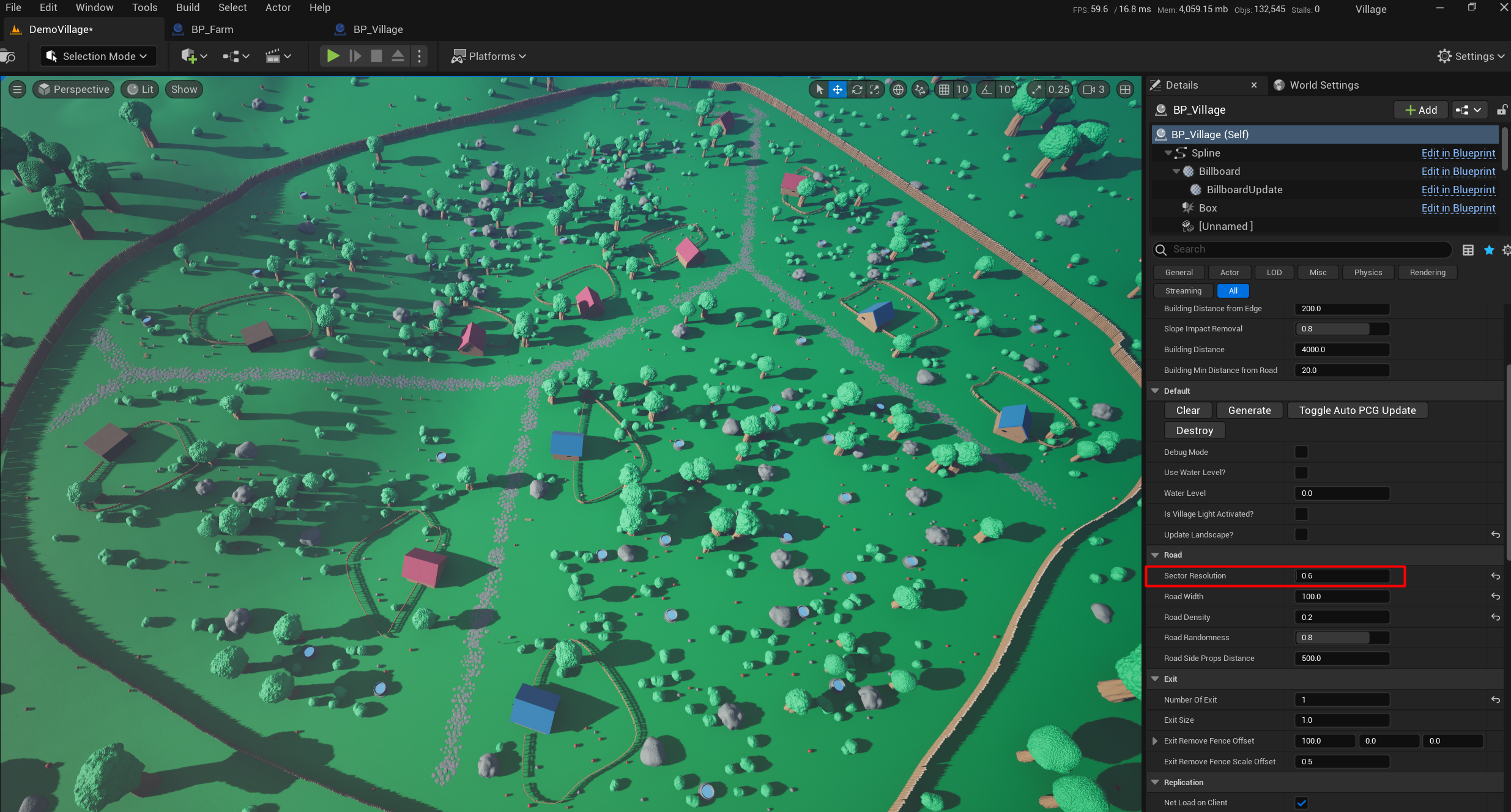

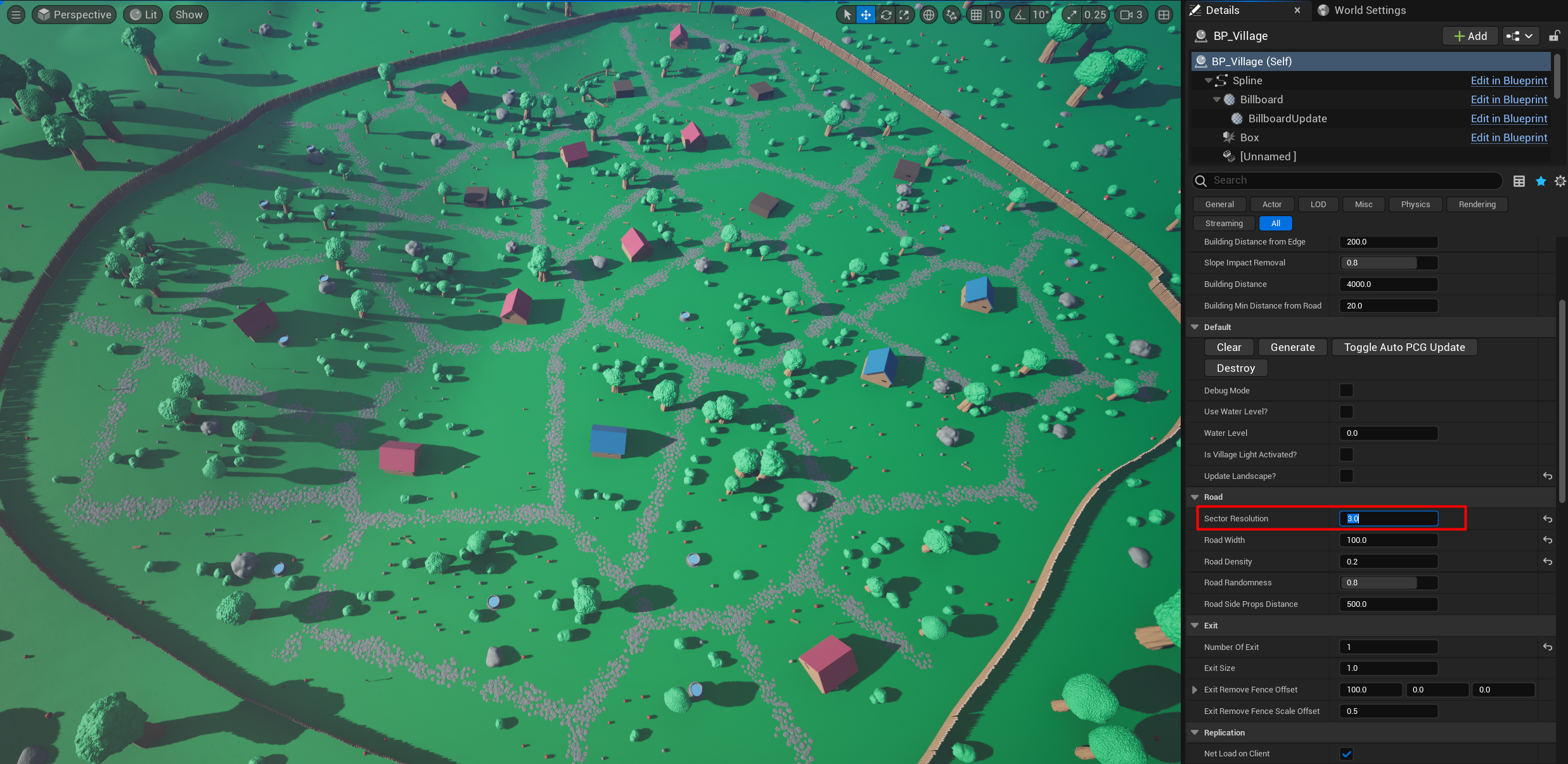

Sector Resolution: Affect how often the roads "break" to create new intersections. A higher number will create smaller sections.
Road Width: Increase the width of the roads
Road Density: Density of the road meshes to place from 0 to 1
Road Randomness: Create a "perfect squared grid" or a more chaotic one (like the screenshots above). Between 0 and 1
Road Side Props Distance: Minimum distance to add props on the side of the roads
Number Of Exits: Add exits in the village fence. Note that a current bug creates artifacts in the bound calculation to remove the fences, this is a PCG bug that will be solved in 5.4.2
Exit Remove Fence Offset: Move the exit bound to remove the fences around it. This setting allows you to adjust in case you are not getting the proper result.
Exit Remove Fence Scale Offset: Scale the exit bound to remove the fences around it. This setting allows you to adjust in case you are not getting the proper result.
Clear: Clear the village/farm generated by PCG
Generate: Generate and update the village/farm
Toggle Auto PCG Update: Toggle the automatic update on/off. Learn more here
Destroy: Destroy the village/farm. Useful to also destroy every actor created with it like doors, lights, and flattening stamps.
